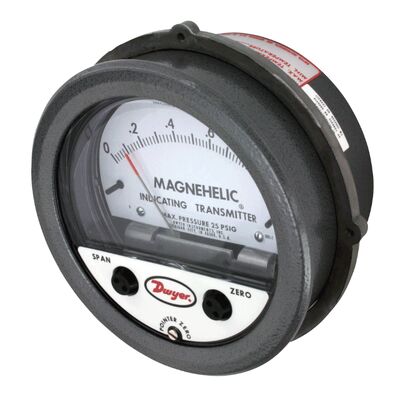

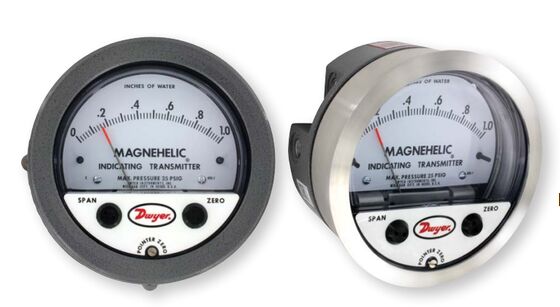

Dwyer 605-12 605-60PA 605-13 605-125PA Differential pressure transmitter

Dwyer 605-12 605-60PA 605-13 605-125PA Differential pressure transmitter

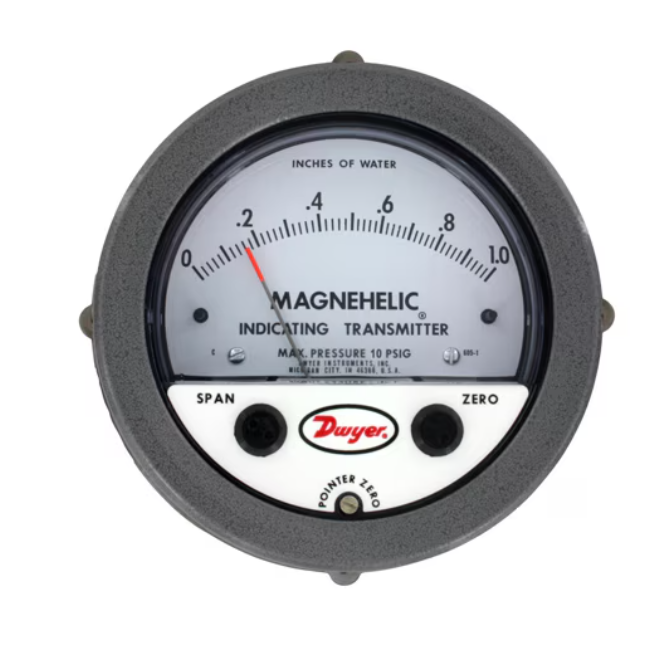

The Series 605 Magnehelic® Differential Pressure Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the 2-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The 2-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply.

APPLICATIONS

• Monitor pressures in ducts, rooms, or total building pressures

• Filter monitoring

• Local indication of clean room pressures with process signal sent to control room
