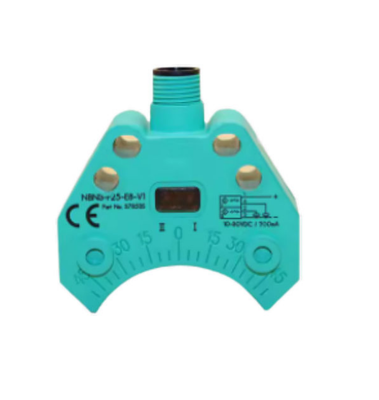

New & Original PLC Photoelectric Sensor Switch P+F NBN3-F25-Z8-V1

Reduction factor r304 1 Reduction factor rSt37 1.1 Output type 2-wire Nominal ratings Operating voltage UB 6 ... 60 V DC Switching frequency f 0 ... 500 Hz Hysteresis H typ. 0.2 % Reverse polarity protection reverse polarity tolerant Short-circuit protection no Voltage drop Ud ≤ 5 V Voltage drop at IL Voltage drop IL = 10 mA, switching element on Ud 0.8 ... 4.8 V typ. 3.8 V Operating current IL 4 ... 100 mA Lowest operating current Im 4 mA Off-state current Ir 0 ... 1 mA typ. 0.7 mA Time delay before availability tv ≤ 1 ms Switching state indicator LED, yellow Compliance with standards and directives Standard conformity Standards EN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approval cULus Listed, General Purpose CSA approval cCSAus Listed, General Purpose CCC approval Certified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection type Connector plug M12 x 1 , 4-pin Housing material PBT Sensing face PBT Degree of protection IP67 Tightening torque, fastening screws M5 x 25 : 2.7 Nm Note Mounted on mechanical drive Connection I II I II 1 L+ L L+ L-4 2 3 I
