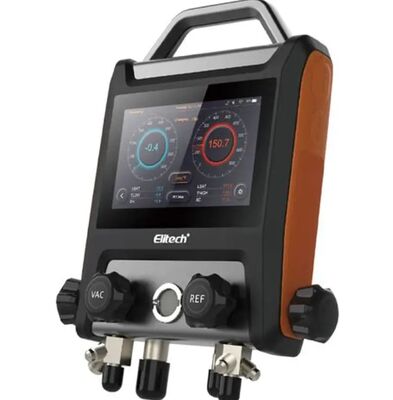

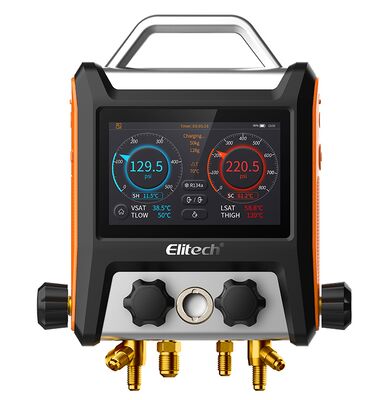

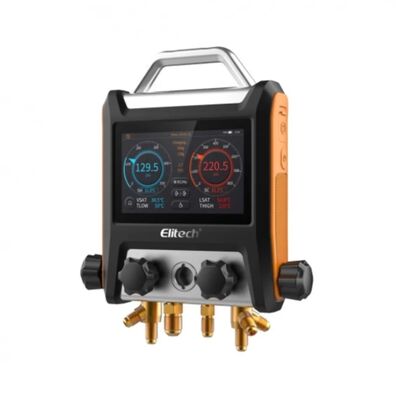

Intelligent Digital Manifold with 800psi Pressure Range 300℉ Temperature Range and 0.5%FS Accuracy

  • Intelligent Digital Manifold with 800psi Pressure Range 300℉ Temperature Range and 0.5%FS Accuracy
  • Intelligent Digital Manifold with 800psi Pressure Range 300℉ Temperature Range and 0.5%FS Accuracy
  • Intelligent Digital Manifold with 800psi Pressure Range 300℉ Temperature Range and 0.5%FS Accuracy
  • Intelligent Digital Manifold with 800psi Pressure Range 300℉ Temperature Range and 0.5%FS Accuracy
  • Intelligent Digital Manifold with 800psi Pressure Range 300℉ Temperature Range and 0.5%FS Accuracy
  • Intelligent Digital Manifold with 800psi Pressure Range 300℉ Temperature Range and 0.5%FS Accuracy
محل منبع چین
نام تجاری Elitech
شماره مدل MS-4000
مقدار حداقل تعداد سفارش 2
قیمت USD＄485
جزئیات بسته بندی بسته بندی اصلی
زمان تحویل در انبار
شرایط پرداخت L/C، D/A، D/P، T/T، Western Union
قابلیت ارائه 20 PC
جزئیات محصول
برجسته کردن

digital manifold voltage meter,intelligent 2 valves power meter,original elitech MS-4000 meter

,

intelligent 2 valves power meter

,

original elitech MS-4000 meter
پیام بگذارید
توضیحات محصول
Pressure (High-Pressure Port and Low-Pressure Port )

Measuring Range: -14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
Accuracy: 0.5%FS
Resolution: 0.1psi/0.1kg/cm2/0.1bar/0.01MPa
Pressure unit: psi, inHg, kg/cm2, cmHg, bar, kPa, MPa
Data Sampling Frequency: 0.5S
Overload: 1000psi/70kg/cm2/69bar/6.8MPa

Temperature Clamp (High-Pressure Port and Low-Pressure Port )

Temperature Range: -40℉-300℉/ -40℃-150℃
Accuracy: ±0.1℃/±0.18℉
Resolution: 0.1℉/℃
Temperature Unit: ℉, ℃

Vacuum

Range: 0-19000 microns
Accuracy: 0-10000microns, ±10% of Reading / ±10 microns; 10000-19000microns, ±20% of Reading
Vacuum Unit: inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa
Resolution: 0-400, 1 microns; 400-3000, 10 microns; 3000-10000, 100 microns; 10000-19000, 250 microns;
Interface: 1/4SAE and 1/4SAET

Interface: 1/4 SAE*3 & 3/8 SAE*1

Sensor interface: PS/2*2 ( left interface is temperature & vacuum probe multiplexing)

USB Interface: Type-C*1 (for data export and charging)

Dimensions: 254*215*46mm

Weight: 3.5lb/1.5kg

Working temperature: -20~60℃/-4~140℉

Storage temperature: -40~80℃/-40~176℉
