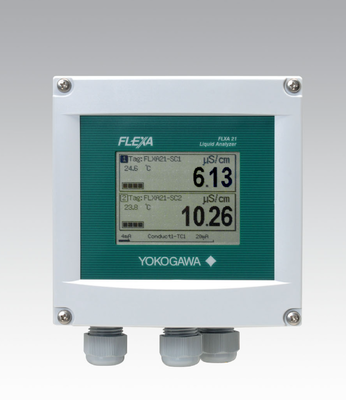

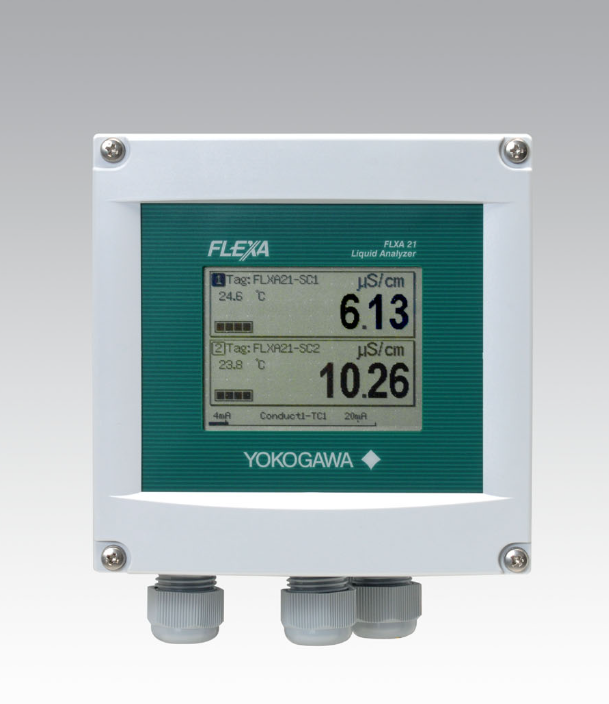

Yokogawa FLXA21 2-Wire Dual Channel Transmitter/Analyzer FLXA21 Liquid Analyzers

محل منبع	ژاپن
نام تجاری	yokogawa
گواهی	/
شماره مدل	FLX21
مقدار حداقل تعداد سفارش	1 عدد
قیمت	USD 1100/PC
جزئیات بسته بندی	بسته بندی اصلی
زمان تحویل	20 روز کاری
شرایط پرداخت	T/T
قابلیت ارائه	500 قطعه در ماه

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتس اپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

جزئیات محصول

مواد محفظه	پلاستیک (پلی کربنات)	رتبه بندی مسکن	IP66/ NEMA 4A/ CSA 3S
منبع تغذیه	2 سیم 24 VDC حلقه نیرو	pH	خطی: ± 0.01 pH، تکرار: ± 0.01 pH، دقت: ± 0.01 pH
ORP	خطی: ± 1 میلی ولت، تکرار: 1 ± میلی ولت، دقت: 1 ± میلی ولت

پیام بگذارید

توضیحات محصول

Features of FLXA21

High reliability with two detectors and reduced maintenance and instrumentation costs through digital communications

pH/ORP, conductivity, and dissolved-oxygen detectors can be connected to two of the same type
Backup system with two detectors for higher reliability measurements
Achieved reduced installation cost and space saving by measuring two different points
Two detectors enable continuous measurement without interruption during maintenance
Reducing maintenance/instrumentation costs through HART communications

Improvement of expandability by modular structure

Rich system construction by modular structure

Equipped with various advanced functions

Self-diagnosis function of the detector
The impedance, asymmetric potential, slope, etc. of the detector are constantly measured
Health and maintenance timing forecasts
Saves the latest five calibration results and predicts future maintenance and calibration timing
Built-in Quick Setup
Screen instructions (guides) for easy minimal set-up

Touch screen for improved operability and enhanced operation screens

Reliable, friendly operation while interacting with the screen
Various display modes are available, and a high degree of freedom can be selected.

Sensors suited for a wide range of applications

Can be connected to various types of pH/ORP, conductivity, electromagnetic conductivity, and dissolved oxygen detectors

Selectable from 12 languages

Japanese, English, Chinese, Korean, German, French, Russian, Italian, Spanish, Czech, Polish, Portuguese

Compatible with KOSHA, ATEX and various other types of explosion-proof

Intrinsically safe type of ATEX, IECEx, FM, CSA and NEPSI, and nonincendive of FM and CSA.

Supports communication

HART, Profibus, FieldBus

Common specification

Area Classification	General Purpose Class I Div II (without the use of IS Barrier) Class I Div I (with the use of IS Barrier)
Enclosure Material	Plastic (Polycarbonate)
Housing Rating	IP66/ NEMA 4A/ CSA 3S
Power Supply	2-wire 24 VDC Loop Powered
Output Signal	Bi-directional HART digital communication, superimposed on mA (4-20 mA) signal Optional FF (FOUNDATION Fieldbus) and PF (Profibus) communication
Intrinsically safe type	ATEX, IECEx, FM, CSA and NEPSI, and nonincendive of FM and CSA.

Features of pH and ORP measurement

Built-in calibration standard table, with temperature compensation function and stability check function, realizes high-precision pH measurement.
In addition to pH measurements, temperature and redox potential (ORP) can also be measured.
As a diagnostic function of the detector, impedance, asymmetric potential, slope, etc. are constantly measured to continuously diagnose the state of the detector such as dirt/damage of the electrode, disconnection, and lowering of the measuring liquid level. In addition, the latest five calibration results are stored to predict future maintenance and calibration timing.

pH and ORP measurement specification

Input Range		pH: -2 to 16 pH (with option /K: 0 to 14 pH) ORP: -1500 to 1500 mV rH: 0 to 100 rH Temperature: Pt1000, Pt100, 6.8k, PTC10k, 3k Balco, PTC500: -30 to 140 ºC, NTC 8k55: -10 to 120 ºC
Performance (The specifications are expressed with simulated inputs.)	pH	Linearity: ±0.01 pH, Repeatability: ±0.01 pH, Accuracy: ±0.01 pH
	ORP	Linearity: ±1 mV, Repeatability: ±1 mV, Accuracy: ±1 mV
	Temperature	with Pt1000, PTC500, 6.8k, PTC10k, NTC 8k55, 3k Balco Linearity: ±0.3 ºC, Repeatability: ±0.1 ºC, Accuracy: ±0.3 ºC
	Temperature	with Pt100 Linearity: ±0.4 ºC, Repeatability: ±0.1 ºC, Accuracy: ±0.4 ºC

Features of conductivity measurement

Built-in temperature compensation function and calibration standard table enable monitoring of the contamination of the cell for higher accuracy conductivity measurement.
Highly versatile, cell constants from 0.005 to 50 cm-1, two-way and four-way detectors are available.
It also supports five types of temperature detectors for accurate temperature compensation.
Performs pure water compensation in the analysis of demineralized water, steam, condensate, and boiler water. For monitoring of pure water in the pharmaceutical industry, the process liquid quality can be monitored according to the water quality standards of the USP item <645> (refer to item 645 of USP23 Article) guidance (USP).

Conductivity measurement specification

Input Specification		Two or four electrodes measurement with square wave excitation, using max 60m (200ft) cable (WU40/WF10) and cell constants from 0.005 to 50.0 cm-1
Display range	Conductivity	min. 0.01 µS/cm, max. 2000 mS/cm (max 90% zero suppression)
	Resistivity	min. 0.001 kΩ x cm, max. 1000 MΩ x cm (max 90% zero suppression)
	Temperature	min. span 25 ºC, max. span 270 ºC
Performance (Accuracy) (The specifications are expressed with simulated inputs.)	Conductivity	2 µS x K cm-1 to 200 mS x K cm-1: Accuracy: ±0.5%F.S. 1 µS x K cm-1 to 2 µS x K cm-1: Accuracy: ±1%F.S.
	Resistivity	0.005kΩ / K cm-1 to 0.5MΩ /K cm-1: Accuracy: ±0.5%F.S. 0.5MΩ / K cm-1 to 1MΩ /K cm-1: Accuracy: ±1%F.S.
	Temperature	with Pt1000, Pb36, Ni100: Accuracy: ±0.3 ºC with Pt100, NTC 8k55: Accuracy: ±0.4 ºC
	Temperature compensation	NaCl table: ±1 % Matrix: ±3 %
	Temperature	90 % (< 2 decades) in 7 seconds
